Heavy Duty Dual Cylinder Rotating Grapple for Demolition, Forestry & Material Handling

The Dual Cylinder Rotating Grapple is designed for heavy-duty material handling, offering greater gripping force and improved stability than single-cylinder models. It is ideal for handling logs, rocks, concrete, scrap metal and demolition debris on excavators from 5 to 35 tons.

Equipped with a reinforced frame and 360° hydraulic rotation, the grapple allows operators to grab, rotate and position materials accurately while reducing unnecessary excavator movement. This helps improve loading efficiency and productivity in demanding working environments.

Built with high-strength wear-resistant steel, reinforced pivot points and protected hydraulic components, the Hydraulic Dual Cylinder Grapple delivers reliable performance for demolition, forestry, recycling, quarry work and general material handling while keeping maintenance requirements low.

Technical Specifications

Advantages

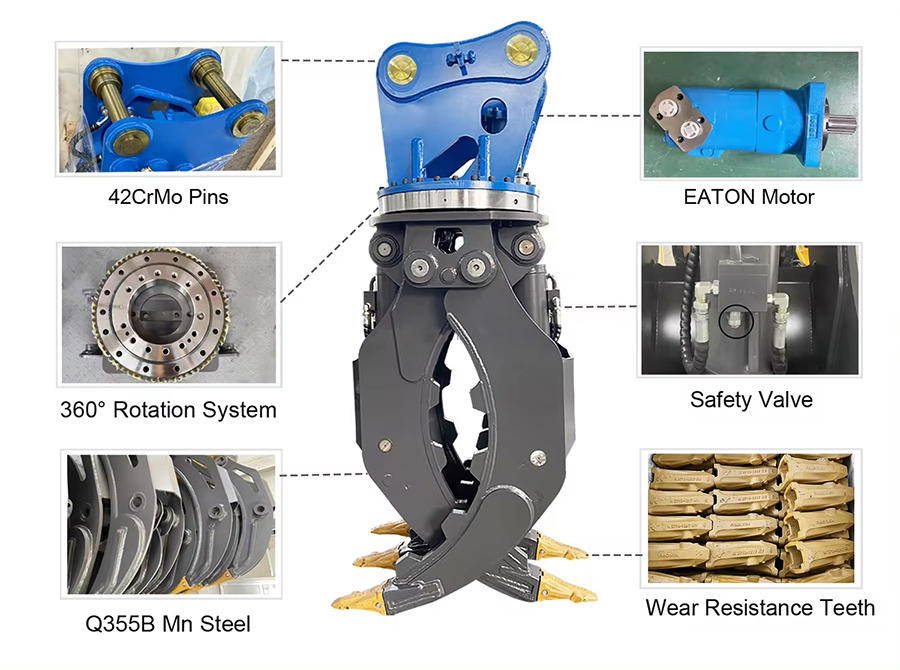

Built for intensive daily operation, the Heavy Duty Rotating Grapple offers higher gripping force, greater structural strength and excellent reliability in demanding environments where heavy materials are handled continuously.

• Dual hydraulic cylinders provide balanced clamping force for improved grip on oversized logs, concrete, steel and irregular materials.

• Reinforced grapple body increases durability for continuous demolition, quarry and recycling applications.

• 360° hydraulic rotation improves loading accuracy while reducing unnecessary excavator movement.

• Heavy-duty pivot pins and replaceable bushings extend service life under high working loads.

• Wide jaw opening allows faster handling of bulky materials, reducing loading cycles and improving productivity.

• Protected hydraulic hoses minimize accidental damage in harsh working environments.

• Optimized jaw geometry delivers secure gripping performance for timber, rocks, demolition debris, scrap metal and construction waste.

• Suitable for demanding applications requiring continuous heavy lifting and material sorting.

• Compatible with various quick coupler systems for convenient installation.

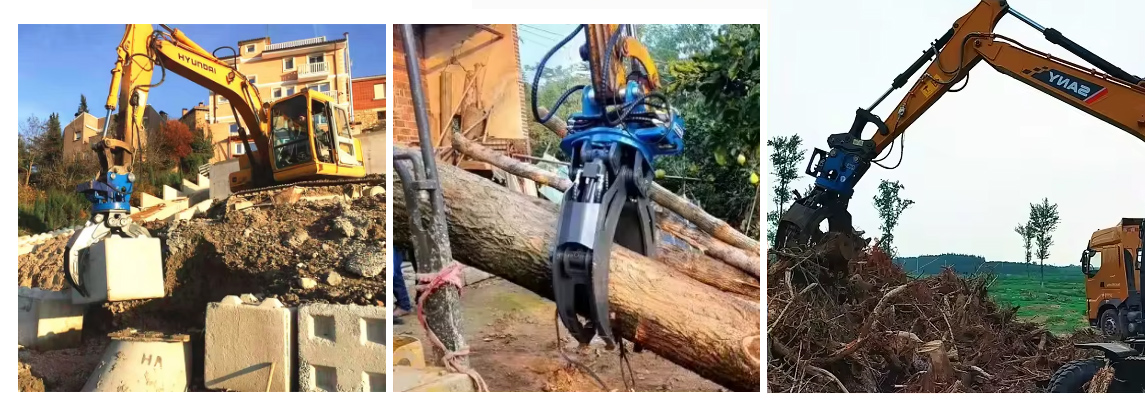

Typical Applications

The Hydraulic Dual Cylinder Grapple is designed for contractors who require maximum durability and gripping power across multiple industries. Its reinforced structure makes it particularly suitable for handling heavy, bulky and irregular materials under continuous working conditions.

• Demolition Projects
  Handling reinforced concrete, structural steel, bricks and demolition debris after building removal.

• Forestry & Timber Operations
  Loading large logs, tree trunks, branches and timber bundles efficiently in forests and sawmills.

• Scrap & Recycling
  Moving steel scrap, industrial waste, metal structures and recyclable materials in recycling facilities.

• Quarry & Rock Handling
  Transporting rocks, riprap and broken concrete during quarry, mining and infrastructure projects.

• Construction Material Handling
  Loading pipes, steel beams, precast concrete components and other heavy building materials.

• Land Clearing & Site Development
  Removing roots, vegetation, fallen trees and bulky waste before construction begins.

How to Choose?

Selecting the right Dual Cylinder Rotating Grapple depends on more than excavator size alone. To achieve the best gripping performance, operators should also consider hydraulic capacity, material type and the working environment. The following guide can help you choose the most suitable model for your machine and application.

1. Match the Grapple to Your Excavator

Always begin by confirming your excavator's operating weight. Choosing a correctly matched attachment helps maintain lifting capacity, improves stability and reduces unnecessary wear on the boom and hydraulic system.

2. Verify Hydraulic Capacity

Confirm that your excavator provides sufficient auxiliary hydraulic flow and pressure. Proper hydraulic matching ensures smooth 360° rotation, stable clamping force and reliable long-term performance.

3. Evaluate Your Working Materials

Dual cylinder grapples are recommended for handling heavy logs, reinforced concrete, structural steel, rocks, scrap metal and other dense or oversized materials. If your projects frequently involve high-impact loading, the reinforced dual-cylinder design provides better gripping stability than lighter alternatives.

4. Consider Future Work Requirements

Many contractors use one grapple across multiple projects. Choosing a slightly higher-capacity model today can provide greater flexibility for future demolition, forestry or recycling jobs while improving long-term equipment value.

If you are unsure which model is most suitable, simply provide your excavator model, operating weight, hydraulic flow and primary application. Our team will recommend the appropriate Hydraulic Dual Cylinder Grapple and prepare a competitive quotation.

Why Choose TianGe

TianGe develops excavator attachments that combine durability, reliable hydraulic performance and practical working efficiency. Every Heavy Duty Rotating Grapple is built to withstand demanding job sites while helping customers reduce maintenance costs and improve productivity.

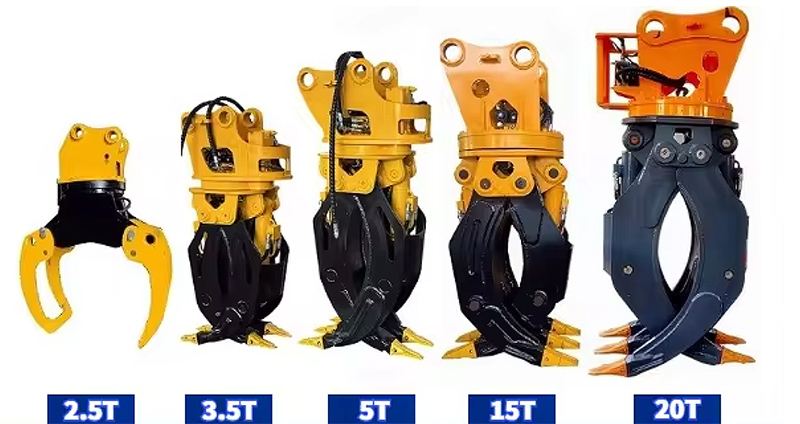

• Complete model range for excavators from 5 to 35 tons.

• Reinforced steel construction for demanding heavy-duty applications.

• Strict hydraulic, rotation and quality inspections before shipment.

• Compatible with multiple quick coupler systems.

• Professional assistance for model selection and application matching.

• Responsive after-sales support with spare parts availability.
