Excavator Orange Peel Grapple for Scrap Yard, Recycling, Steel & Port Handling

The excavator orange peel grapple is a heavy-duty hydraulic attachment designed for scrap yard operations, recycling facilities, steel mills, and port material handling environments. It is widely used for loading, sorting, and transferring steel scrap, demolition waste, and bulk industrial materials.

Compared with standard excavator buckets, this scrap grapple uses a multi-finger gripping structure that improves stability when handling irregular and mixed materials, making it ideal for continuous industrial operations.

Working Video – Scrap Yard Orange Peel Grapple Operation

Watch Orange Peel Grapple Working Video on YouTube

Scrap Grapple Model Specifications

Scrap Grapple Application Types (Fixed / Rotary / Heavy Duty)

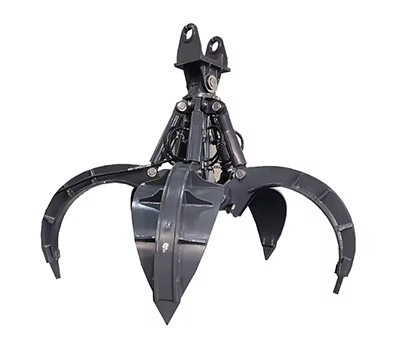

The large-capacity orange peel grapple is designed for scrap yard bulk material handling and steel recycling operations with long-reach excavators.

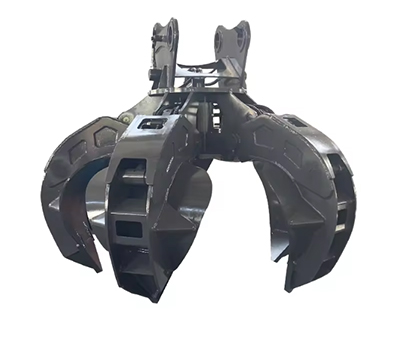

The fixed bracket scrap grapple is widely used in recycling plants for stable sorting and continuous waste handling applications.

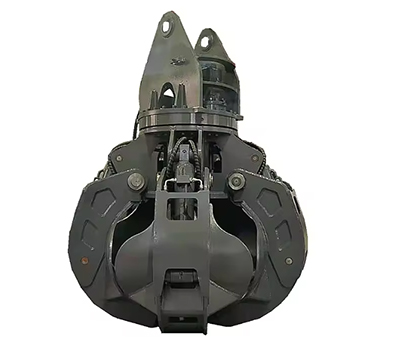

The rotary scrap grapple is designed for steel mills and industrial recycling environments requiring flexible rotation and high efficiency.

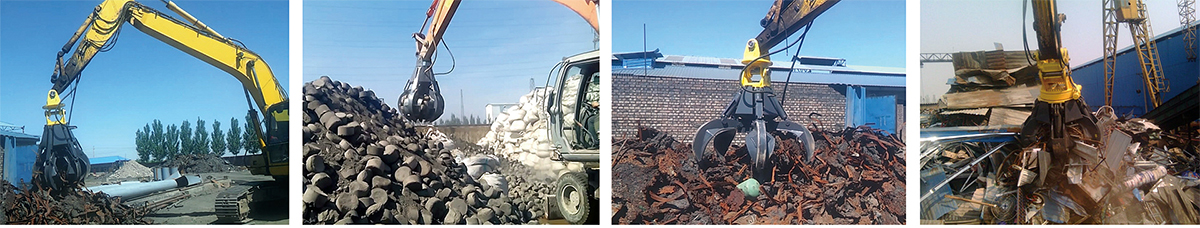

Scrap Yard, Recycling, Steel Handling & Port Applications

• Scrap yard steel loading, sorting, and transfer operations

• Recycling plant waste separation and material recovery

• Steel mill bulk material handling and continuous feeding

• Port cargo loading and heavy scrap transfer operations

Product Advantages

• Multi-finger structure improves gripping stability for irregular scrap materials

• Designed for continuous scrap yard and recycling operations

• Available in multi-finger configurations for different excavator applications

• High-strength steel body for steel handling and port operations

• Stable hydraulic system for long-cycle industrial use

• Compatible with excavators from 3 tons to 30+ tons

Selection Guide

The selection of an excavator orange peel grapple should be based on working weight, hydraulic flow, and excavator tonnage shown in the technical specification table above.

For small excavators (4–8 tons), models with approximately 510 kg weight and 20–70 LPM oil flow are recommended, providing better control in light scrap yard and recycling tasks.

For medium applications (9–16 tons), 1200 kg class models with 60–120 LPM flow are widely used in recycling plants and steel handling operations, offering a balance between efficiency and stability.

For heavy-duty operations (17–25 tons), higher capacity models with increased jaw opening and structural strength are suitable for continuous scrap yard loading and industrial material handling.

For large-scale port and steel mill applications (26–35 tons), the largest models in the table provide maximum opening size and hydraulic capacity for high-intensity bulk material transfer.
