Excavator Ripper Boom Assembly

Excavator Ripper Boom Assembly

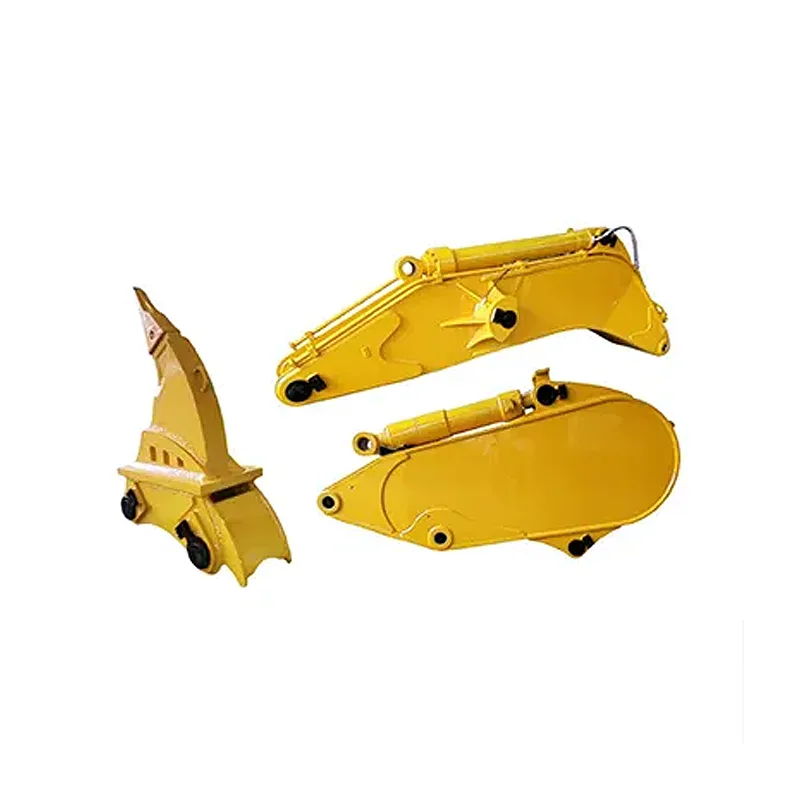

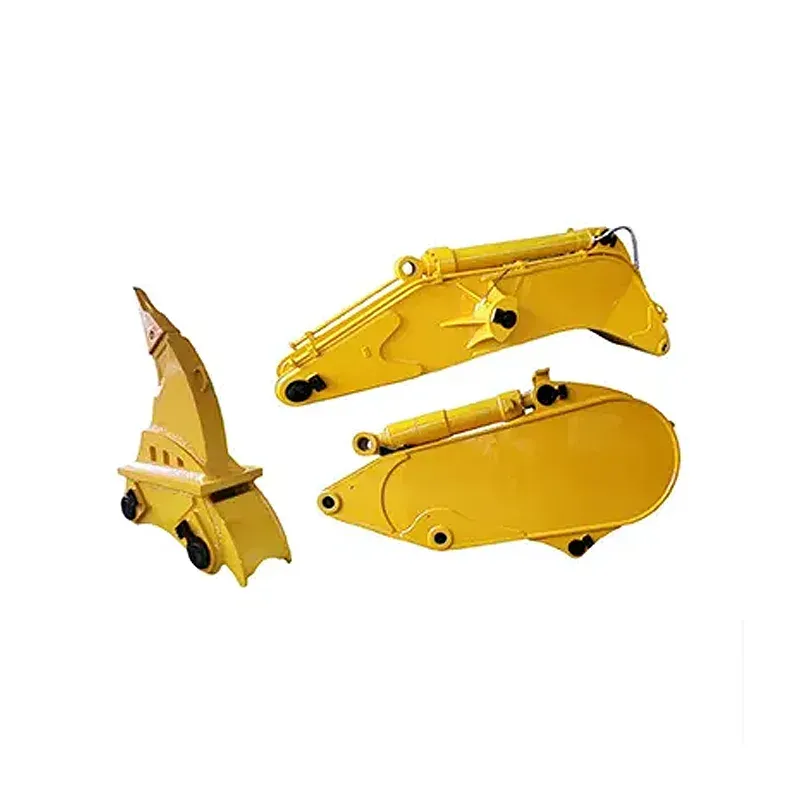

Engineered for severe-duty rock and hard-ground ripping, this reinforced boom and arm assembly is available in four configurations for 30-to-90-ton excavators, complete with an integrated ripper and custom mounting hardware.
Product Name: Ripper boom / Rock ripper arm / Ripper stick boom / Excavator ripper arm
Type: Booms & Sticks
After-sales Service: Provided
Warranty: 1 Year
Customization: Available
Shipping Cost: Negotiate with us about shipping cost and estimated delivery time.
Get a quote
WhatsApp
Overview
FAQ

Product Overview

The TGEC excavator ripper boom assembly is a dedicated reinforced boom-and-arm configuration designed for severe-duty ripping applications, featuring a ruggedized design to handle high ripper loads. Manufactured from high-tensile steel with strengthened pivot joints and extra-thick plating, it’s built to endure the severe stresses of ripper tooth operation. The integrated ripper, fixed at the arm end, uses the excavator's bucket curl function to loosen rock, caliche, and permafrost through the standard bucket curl circuit rather than a dedicated auxiliary attachment circuit. As a key member of the TGEC excavator boom and arm assemblies family, this unit is ideal for quarrying, highway construction, mining, and major earthmoving jobs where conventional buckets fall short. For more details on selecting the right boom, check out our excavator boom types guide and excavator boom parts reference.

Available Configurations & Models

These four models span the 30-to-90-ton excavator range. Dimensions A through D align with the callouts on the accompanying CAD drawing. Keep in mind that all listed dimensions are approximate and subject to change depending on the specific machine and final build configuration.

ParameterTG-RB30TG-RB40TG-RB70TG-RB90
Excavator Class30 t (33 ton)40 t (44 ton)70 t (77 ton)90 t (99 ton)
Boom Weight4000–5000 kg (8820–11020 lb)5500 kg (12130 lb)10000–11000 kg (22050–24250 lb)10000–11000 kg (22050–24250 lb)
Arm Weight (incl. ripper)10000–11000 kg (22050–24250 lb)13000 kg (28660 lb)17000 kg (37480 lb)22000 kg (48500 lb)
Dimension A6800 mm (267.7 in)7000 mm (275.6 in)8300 mm (326.8 in)9600 mm (378.0 in)
Dimension B1400 mm (55.1 in)1600 mm (63.0 in)1800 mm (70.9 in)2000 mm (78.7 in)
Dimension C6400 mm (252.0 in)6600 mm (259.8 in)6900 mm (271.7 in)7200 mm (283.5 in)
Dimension D4400 mm (173.2 in)4600 mm (181.1 in)4300 mm (169.3 in)4200 mm (165.4 in)
Boom Transport Size4700×1300×1650 mm (185×51×65 in)4800×1300×1650 mm (189×51×65 in)5400×1450×1700 mm (213×57×67 in)6000×1600×1850 mm (236×63×73 in)
Arm Transport Size (incl. ripper)5300×2100×850 mm (209×83×33 in)5300×2100×850 mm (209×83×33 in)5300×2100×850 mm (209×83×33 in)6200×2350×940 mm (244×93×37 in)

The data in this table is offered as a general reference. Actual figures depend on the final setup. For precise specifications, reach out to the TianGe technical staff.

Series-Wide Technical Highlights

  • Made from heavy-gauge, high-strength steel with reinforced hinge points and thickened panels to handle high ripper loads.

  • The built-in ripper shank uses the bucket curl circuit to loosen hard rock, compacted fill, and icy ground.

  • Custom-fabricated mounting brackets are engineered for the specified excavator make and model, based on verified pin spacing, pin diameter and stick width requirements.

  • The assembly includes the boom, arm, and integrated ripper configuration, with pins and bushings specified according to the target machine configuration.

  • The boom and arm are shipped separately where required to accommodate transport and container-loading requirements.

Excavator Compatibility Guidance

TGEC ripper boom assemblies are available for 30-to-90-ton excavators in four distinct sizes. Choose the TG-RB30 for 30-ton-class machines, the TG-RB40 for 40-ton excavators, the TG-RB70 for 70-ton-class equipment, and the TG-RB90 for 90-ton models. Each assembly is built to order for the precise make and model, with mounting brackets designed to match the machine's pin dimensions. When you place an order, be sure to include the excavator make and model, operating weight, pin-to-pin spacing, pin diameter, and stick width so our engineering department can confirm the correct mounting configuration. This ripper configuration is designed to use the excavator's bucket curl circuit rather than a dedicated auxiliary attachment circuit.

Typical Applications

  • Quarries and surface mining: Loosen and displace hard rock layers, overburden, and tundra for easier loading.

  • Road building: Penetrate caliche, compacted subgrade, and rocky outcrops during base course prep.

  • Large civil works: Excavate solid ground, shattered rock, and permafrost on heavy civil and footing projects.

  • Demolition and site clearing: Dismantle concrete pads, footings, and stubborn ground during site preparation.

  • Rock trenching and hard-ground excavation: Cut through rock and cemented layers that stop standard buckets, then clear out the spoils.

TGEC Rock Boom and Ripper Arm – CAD Engineering Drawing with dimension annotations A through D

Working Principle

The ripper tooth is operated through the excavator's bucket curl function. During ripping, the machine applies hydraulic force through the arm and attachment to loosen hard or compacted ground. The boom and arm are constructed from thicker plate with reinforced joints to withstand the loads generated during ripper operation. This configuration uses the excavator's standard bucket curl circuit rather than a dedicated auxiliary attachment circuit.

Dealer & Bulk Orders

TGEC provides ripper boom assemblies directly to equipment distributors, mining services, quarry operators, and general contractors through factory-direct and wholesale programs. We can also engineer custom configurations for popular excavator brands in your region. OEM and private-label options are available with tailored paint finishes, logo applications, and custom packaging. Get in touch with the TGEC dealer team and share your company profile, target machine models, and expected annual quantities to get started with a wholesale arrangement.

Request a Quote — Excavator Ripper Boom Assembly

Share your excavator make and model, operating weight, pin-to-pin spacing, pin diameter, stick width, desired model (TG-RB30 through TG-RB90), main use case (quarry / mining / road construction / heavy civil), and the number of units you're looking for. Our engineering team will review the machine and application requirements and confirm the appropriate configuration, double-check mounting compatibility, and get back to you with a factory-direct price, production lead time, and shipping particulars.

Dealers and OEMs: reach out to TGEC to go over volume supply, bespoke configurations, white-label needs, and ongoing procurement agreements.

Frequently Asked Questions

What is an excavator ripper boom assembly used for?+

An excavator ripper boom assembly is a reinforced boom and arm configuration with an integrated ripper tooth, designed to break and loosen hard rock, hardpan, frozen soil and compacted ground that standard buckets cannot penetrate. It is commonly used in quarry work, mining, road construction, heavy civil projects and demolition site preparation. The ripper tooth uses the excavator bucket curl force to break up material without requiring a separate hydraulic breaker.

What type of excavator is suitable for a ripper boom assembly?+

Ripper boom assemblies are designed for medium to large excavators from 30 to 90 tons. The TG-RB30 is intended for 30-ton-class excavators, the TG-RB40 is available for 40-ton machines, the TG-RB70 is configured for 70-ton-class equipment, and the TG-RB90 is intended for 90-ton excavators. The appropriate excavator size depends on the required ripping force, ground conditions and machine configuration. The assembly is configured in place of the standard boom and arm. The ripper configuration is designed to use the excavator's bucket curl circuit rather than a dedicated auxiliary attachment circuit.

What information is needed to match a ripper boom to an excavator?+

To match a ripper boom assembly to your excavator, provide the excavator make and model, operating weight, pin-to-pin spacing at the boom foot and arm connection, pin diameter, stick width, and the primary application. This information allows the engineering team to verify the mounting bracket geometry, confirm the correct model size, and ensure the assembly fits the machine properly. If the excavator uses a quick coupler, provide the coupler brand and model as well.

Can the ripper boom assembly be customized for different excavator models?+

Yes. TGEC engineers custom mounting brackets for specific excavator makes and models, for specific excavator makes and models, subject to machine and mounting-data verification. The boom foot connection, arm pivot geometry and ripper attachment are configured to match the specific machine. Custom modifications may include reinforced sections, alternative ripper tooth designs, or modified transport dimensions for specific shipping requirements. Provide the excavator details and our engineering team will confirm the custom configuration.

Can the mounting interface be made to match the customer's machine?+

Yes. The mounting interface is custom-engineered to match the customer's specific excavator model, including the boom foot pin spacing, pin diameter, arm pivot geometry and stick width. Mounting configuration can be engineered according to the excavator's connection requirements. When ordering, provide the excavator make and model, operating weight, pin-to-pin spacing, pin diameter and stick width, and the engineering team will supply the correct mounting bracket. If the machine uses a quick coupler, provide the coupler brand and model so the bracket can be configured to match.

What attachments can be used with a ripper boom assembly?+

The primary attachment for a ripper boom assembly is the integrated ripper tooth, which mounts to the arm end in place of the bucket. The ripper tooth is designed for breaking rock, hardpan and frozen soil. Some configurations may allow alternative ripper shank designs or tooth profiles for specific ground conditions. The assembly is not designed to switch back and forth between a ripper and a standard bucket, as the boom and arm are reinforced specifically for ripper applications. Consult the TGEC engineering team for alternative attachment options.

How is a ripper boom different from a standard excavator boom?+

A ripper boom assembly differs from a standard excavator boom in several key ways. The boom and arm are fabricated from thicker, higher-strength steel with reinforced pivot points to withstand the high shock loads generated by ripping. The arm end is configured for a ripper tooth attachment rather than a bucket. The overall geometry may be optimized for ripping force rather than digging reach. Unlike a standard boom, the ripper assembly is designed specifically for hard ground and rock breaking applications and is not intended for general-purpose digging or material handling.

What should dealers confirm before ordering ripper booms?+

Dealers should confirm the target excavator makes and models common in their market, the typical operating weight range, available pin dimensions for each machine model, and the primary applications their customers use ripper booms for. Verify whether customers require pin-on or quick-coupler mounting configurations. Confirm the expected order volume and any custom branding or packaging requirements. Dealers should also understand the transport dimensions and shipping requirements for each model size. Contact the TGEC dealer sales team to set up a wholesale account and receive volume pricing.

Can TianGe provide OEM ripper boom assemblies?+

Yes. TianGe offers OEM and private-label production for excavator ripper boom assemblies, with custom paint colors, logo placement, packaging and documentation. Flexible minimum order quantities and competitive volume pricing are available for equipment dealers, attachment distributors and mining supply companies. All OEM units meet the same quality standards as TGEC-branded products, with private-label replacement parts and ripper teeth available for after-sales support. Custom mounting brackets can be configured for the excavator brands common in your target market. Contact the sales team with your company details, target market and estimated volume for a customized OEM proposal.

What drawings or machine information are needed for OEM production?+

For OEM production, provide the excavator make and model, operating weight, pin-to-pin spacing at the boom foot and arm connection, pin diameter, stick width, and any available machine dimension drawings. If the customer has specific ripper tooth design requirements or alternative mounting configurations, provide those details as well. The TGEC engineering team will review the information and produce custom fabrication drawings for approval before production begins. Any custom branding, paint color or packaging requirements should also be provided at the quotation stage.

How should a replacement ripper boom assembly be specified?+

When specifying a replacement ripper boom assembly, provide the original excavator make and model, the current boom and arm dimensions if available, the pin-to-pin spacing, pin diameter, stick width, and the reason for replacement and the required working configuration. If the original assembly was a TGEC unit, provide the original model number and serial number if available. For non-TGEC replacements, provide as much dimension information as possible, including the boom length, arm length, pivot spacing and ripper tooth configuration. Our engineering team will verify the dimensions and confirm the correct replacement configuration.

How can I request a quotation for an excavator ripper boom assembly?+

To request a quotation, provide the excavator make and model, operating weight, pin-to-pin spacing, pin diameter, stick width, preferred model (TG-RB30 through TG-RB90), primary application (quarry, mining, road construction, heavy civil), mounting or coupler type, and the quantity required. If you are unsure which model fits your excavator, include the machine details and typical ground conditions, and our technical team can recommend the optimal configuration. Dealers and OEM customers should include company details, target market and estimated volume for a customized supply proposal. Contact us through the website inquiry form or email the sales team directly.
