Product Description

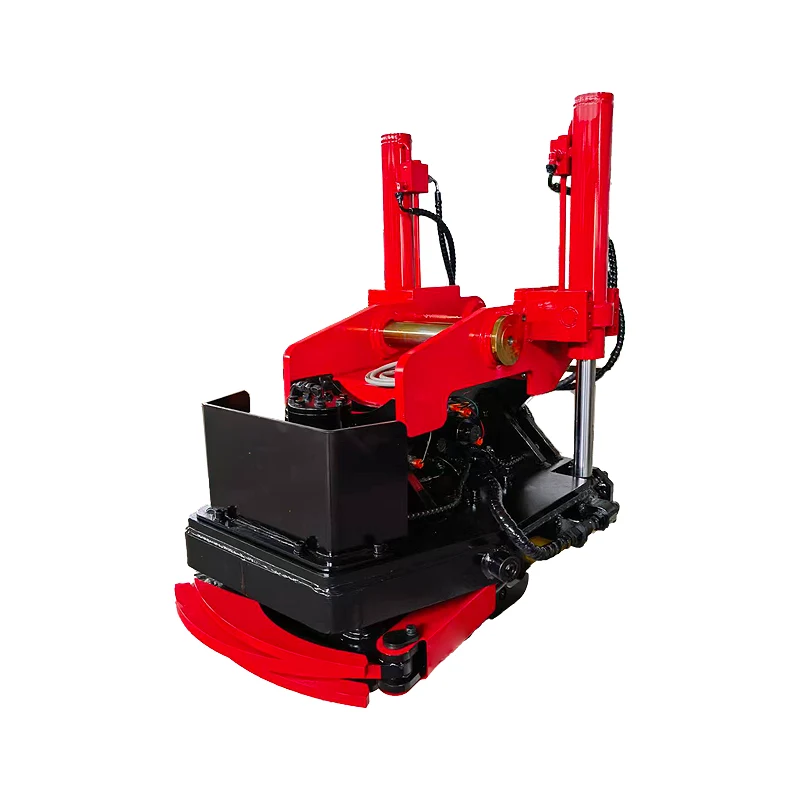

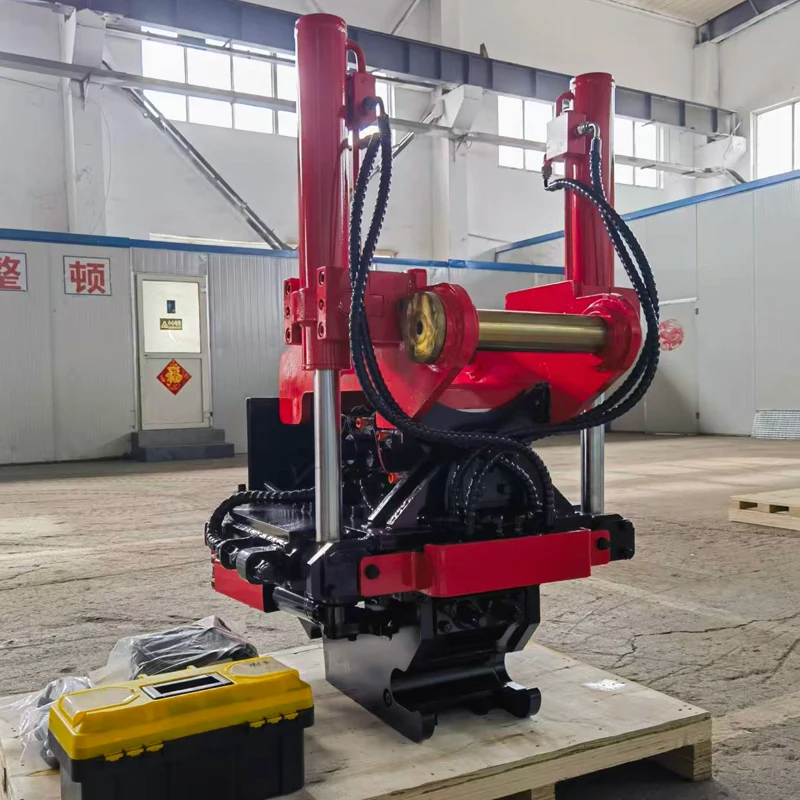

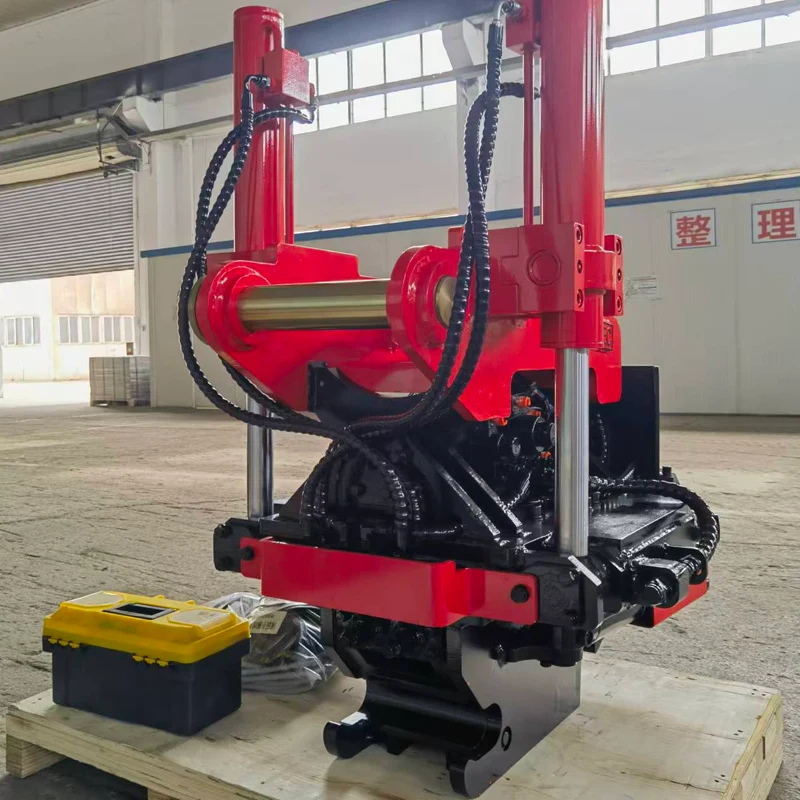

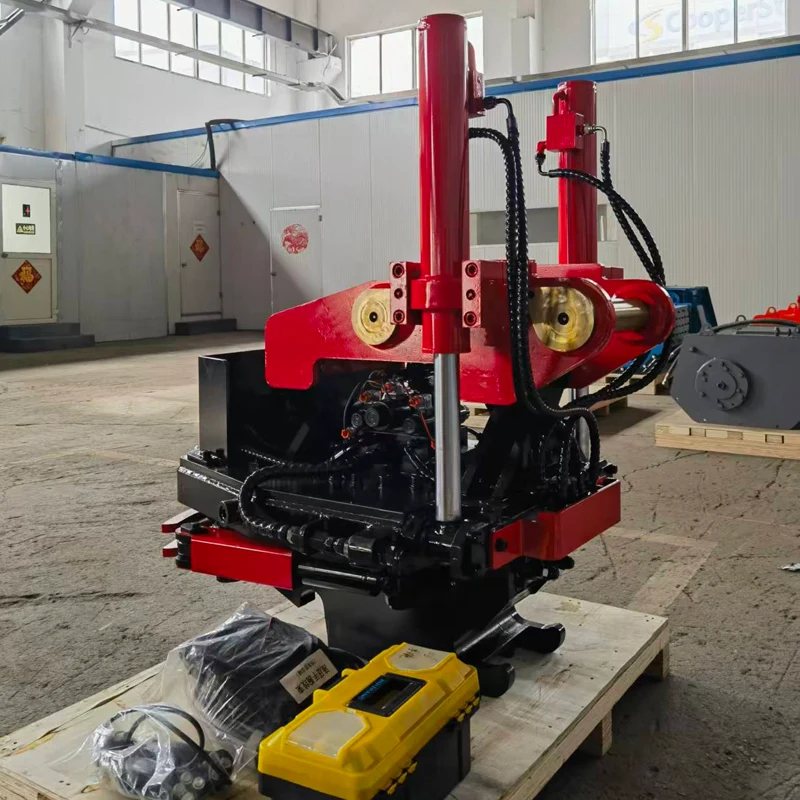

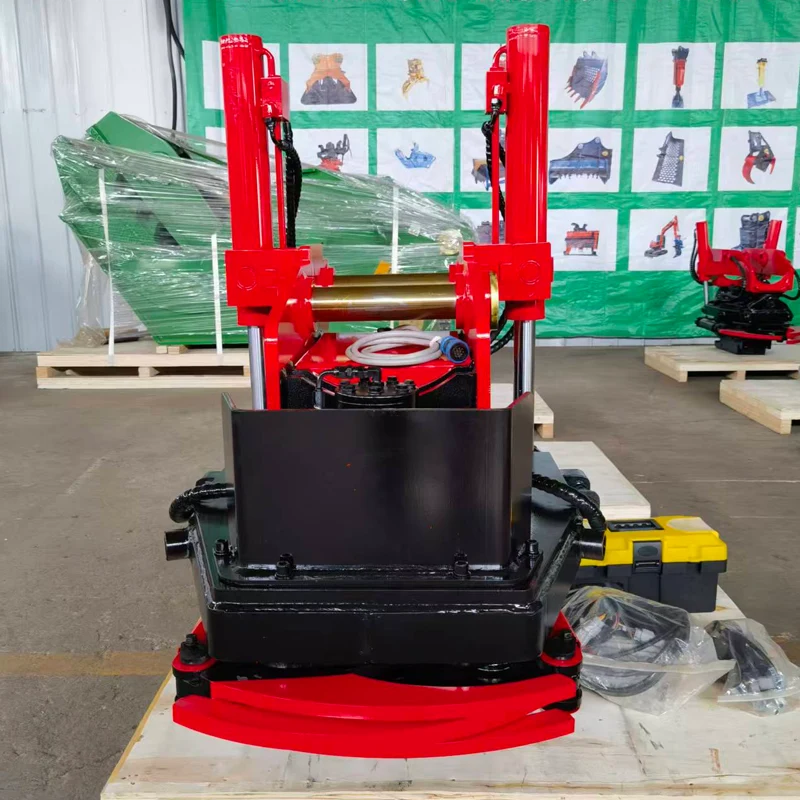

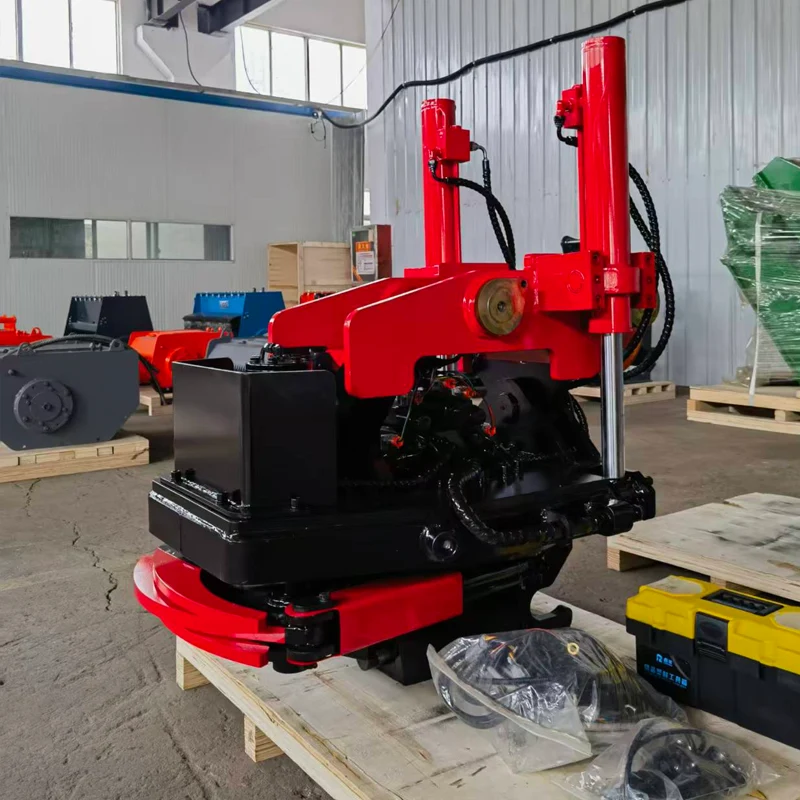

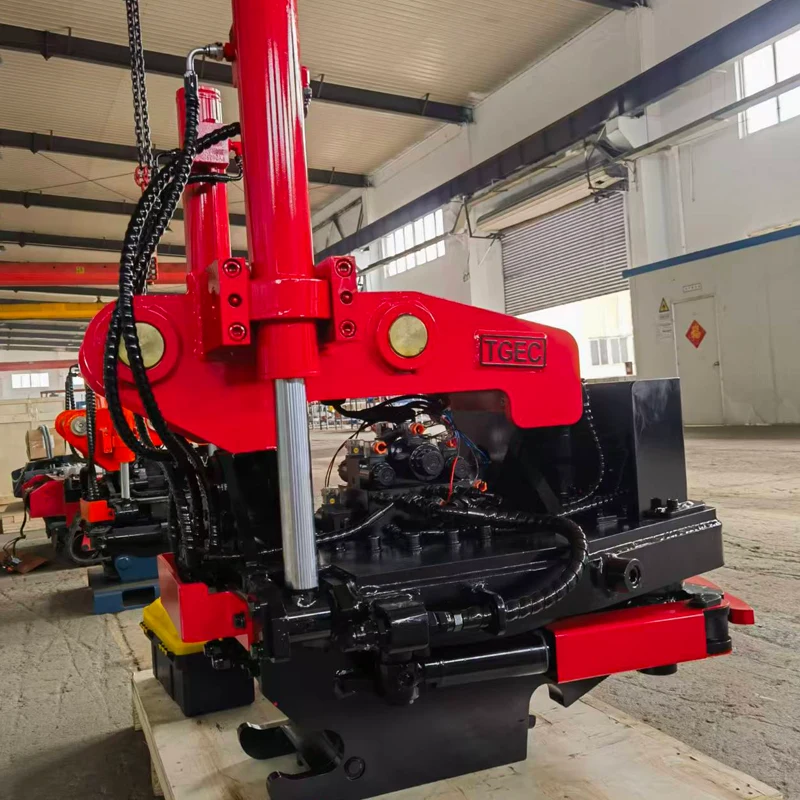

The TGEC excavator tiltrotator is a hydraulic attachment that adds rotation and tilt functionality to compatible buckets and tools. Operators can adjust tool angle and orientation directly from the cab, reducing repeated machine repositioning on grading, ditching, slope finishing and other precision excavation work.
Also known as a tilt rotator or hydraulic tiltrotator, the TGEC line includes five models for 2–22 ton excavators, with tilt torque up to 62 kNm. As a manufacturer of excavator attachments, TGEC can produce custom mounting brackets to match the excavator arm and coupler configuration.
How It Works
A hydraulic rotary motor provides 360° continuous rotation, while hydraulic tilt cylinders adjust the tool angle up to ±45°. Both functions run through the excavator's auxiliary hydraulic circuit, so the operator can position the attachment without constantly moving the machine.
Control Options
Basic tilt and rotation can operate through the excavator's existing auxiliary hydraulics and factory controls when the machine is properly configured — no dedicated joystick or display is required. An optional joystick and digital display control system is available for operators who want proportional control and real-time angle feedback. Hydraulic circuit modifications for the optional kit should be performed by qualified technicians familiar with the excavator's hydraulic system.
Technical Specifications
Select a tiltrotator based on the excavator's operating weight, auxiliary hydraulic flow, working pressure and application requirements. The table below serves as a general model guide. Final configuration and mounting dimensions must be confirmed against the specific excavator before ordering.
| Item / Model | Unit | TG-TR01 | TG-TR04 | TG-TR05 | TG-TR06 | TG-TR08 |
|---|---|---|---|---|---|---|
| Suitable Excavator | Ton / US Ton | 2–4.5 / 2.2–5.0 | 5–6 / 5.5–6.6 | 7.5 / 8.3 | 8–15 / 8.8–16.5 | 18–22 / 19.8–24.3 |
| Working Pressure | Bar / psi | 210 / 3046 | 210 / 3046 | 210 / 3046 | 220 / 3191 | 220 / 3191 |
| Hydraulic Flow | L/min / GPM | 18–38 / 4.8–10.0 | 18–38 / 4.8–10.0 | 70–90 / 18.5–23.8 | 80–100 / 21.1–26.4 | 100–120 / 26.4–31.7 |
| Weight | kg / lb | 173 / 381 | 300 / 661 | 340 / 750 | 510 / 1124 | 650 / 1433 |
| Tilt Torque | kNm / ft-lb | 10.6 / 7818 | 15 / 11063 | 15 / 11063 | 43 / 31715 | 62 / 45729 |
| Rotation Torque | kNm / ft-lb | 4.9 / 3614 | 6.5 / 4794 | 6.5 / 4794 | 7.8 / 5753 | 8.8 / 6491 |
Tilt angle: ±45°. Rotation: 360° continuous on all models. Confirm auxiliary hydraulic flow, pressure, mounting dimensions and control configuration before ordering.
Key Features
-
360° continuous rotation: Position buckets and tools at any working angle without repositioning the excavator.
-
±45° hydraulic tilt: Adjust tool angle for grading, ditching, slope work and profiling.
-
Five models: Covering excavators from 2 to 22 tons.
-
High tilt torque: Up to 62 kNm depending on model.
-
Custom mounting brackets: Manufactured to match the excavator arm, pin dimensions and coupler configuration.
Excavator Compatibility
Model selection depends primarily on operating weight, hydraulic flow, pressure, attachment weight and intended application. Use the ranges below as a starting point, then confirm your machine's hydraulic and mechanical interface.
-
TG-TR01: 2–4.5 ton excavators, 10.6 kNm tilt torque, 173 kg. Compact landscaping, grading and light site work.
-
TG-TR04: 5–6 ton excavators, 15 kNm tilt torque, 300 kg. Utility work, site prep and general grading.
-
TG-TR05: 7.5 ton excavators, 15 kNm tilt torque, 340 kg. Compact and mid-size construction applications.
-
TG-TR06: 8–15 ton excavators, 43 kNm tilt torque, 510 kg. Civil construction, roadwork, grading and larger site development.
-
TG-TR08: 18–22 ton excavators, 62 kNm tilt torque, 650 kg. Heavy grading, large-scale site prep and demanding excavation.
Applications
-
Precision grading and finish work: Continuously adjust bucket angle to hit accurate grades with fewer machine movements.
-
Ditching and drainage: Tilt the bucket to form drainage channels and maintain consistent trench profiles.
-
Slope and embankment finishing: Set the required tool angle for benching, slopes and inclined surfaces.
-
Trenching and backfilling: Position the bucket for controlled material placement around trenches, utilities and confined work areas.
-
Road and site preparation: Improve grading efficiency when preparing road shoulders, foundations, access roads and building pads.
Request a Quote
Tell us your excavator make and model, operating weight, auxiliary hydraulic flow and pressure, coupler or pin configuration, and typical applications. TGEC will recommend a suitable tiltrotator model and provide a mounting solution matched to your machine.
TGEC is a manufacturer and supplier of excavator attachments, offering OEM support and custom mounting configurations for dealers, contractors and rental fleets. Contact us for model selection, technical confirmation and a tailored quote.
