Product Overview

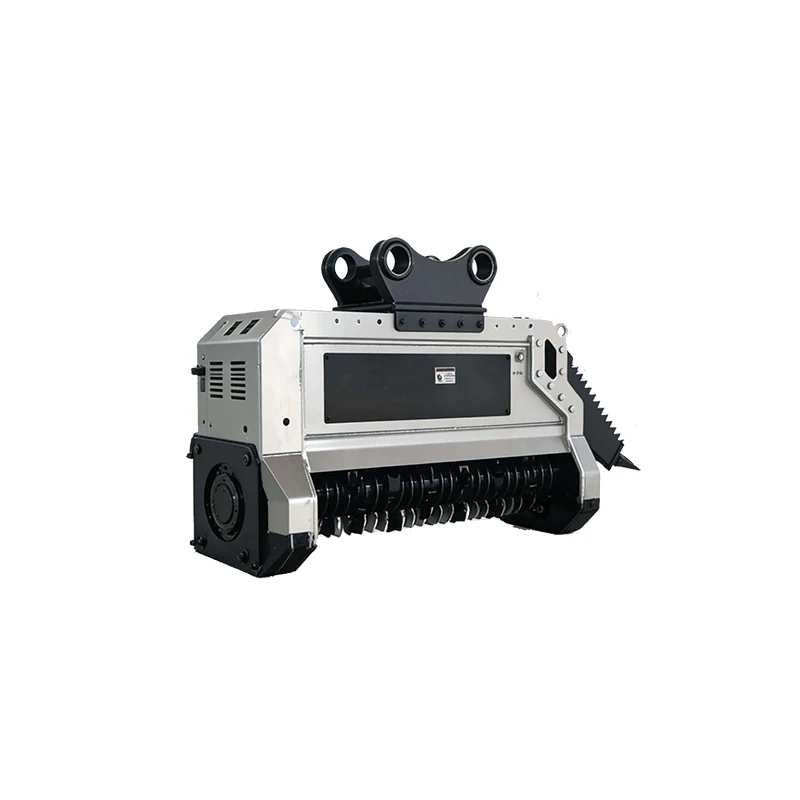

This attachment combines two jobs in one boom-mounted unit. A horizontal rotating drum, lined with cutting teeth, chews through brush and woody vegetation and reduces it to mulch. Above the drum, a hydraulic thumb opens and closes to grab branches, pin material against the drum for more controlled processing, or lift and move finished mulch to a pile or truck. For jobs that call for both cutting and material handling, this setup eliminates the need to switch between a mulcher and a separate grapple.
As part of the TGEC excavator mulchers lineup, this thumb-equipped drum mulcher comes in four widths, each matched to a specific excavator weight class from 3 to 30 tons. The three smallest models are standard production units, while the largest—TG-M10—is fully customizable to suit particular carriers and work sites. If your work is mostly high‑volume, straight‑ahead clearing, the forestry mulcher might be a better fit. For jobs centered on felling standing timber, take a look at the disc mulcher.
Available Configurations & Models
Choose the model that lines up with your excavator's weight, available hydraulic capacity, and the size of the vegetation you're dealing with.
| Parameter | TG-M02 | TG-M04 | TG-M06 | TG-M10 |
|---|---|---|---|---|
| Compatible Excavator Class | 3–5 t (3.3–5.5 ton) | 5–9 t (5.5–9.9 ton) | 9–15 t (9.9–16.5 ton) | 15–30 t (16.5–33 ton) |
| Attachment Weight | 241 kg (531 lb) | 373 kg (822 lb) | 820 kg (1808 lb) | 1200–1800 kg (2646–3968 lb) |
| Working Cutting Width | 800 mm (31.5 in) | 906 mm (35.7 in) | 1102 mm (43.4 in) | 1300–1800 mm (51.2–70.9 in) |
| Maximum Trunk Diameter | 80 mm (3.1 in) | 100 mm (3.9 in) | 150 mm (5.9 in) | 200–300 mm (7.9–11.8 in) |
| Required Hydraulic Flow | 30–60 L/min (7.9–15.9 GPM) | 50–100 L/min (13.2–26.4 GPM) | 50–100 L/min (13.2–26.4 GPM) | 100–200 L/min (26.4–52.8 GPM) |
| Configuration Type | Standard | Standard | Standard | Fully Customizable |
Table data is for reference only. Actual specifications may vary based on the final configuration. Please contact the TianGe technical team for details.
Series-Wide Technical Highlights
Integrated hydraulic thumb for grabbing, controlled feeding, and debris handling—no attachment swap needed
Horizontal drum with cutting teeth for mulching brush and woody material
Four sizes to fit excavators from 3 to 30 tons
Hydraulic flow requirements range from 30 to 200 L/min (7.9 to 52.8 GPM) depending on the model
TG-M10 is fully customizable—mounting, drum width, and other specs can be tailored to your machine and job
Excavator Compatibility Guidance
Choosing the right model starts with your excavator's operating weight and hydraulic capacity. The TG-M02 is built for 3–5 ton machines and needs 30–60 L/min (7.9–15.9 GPM). The TG-M04 (5–9 ton) and TG-M06 (9–15 ton) both run on 50–100 L/min (13.2–26.4 GPM). The TG-M10 handles 15–30 ton carriers with 100–200 L/min (26.4–52.8 GPM) and offers full customization.
Since the thumb needs its own hydraulic function, make sure your excavator has an extra auxiliary circuit available for thumb operation—on top of the circuit for drum rotation. A case drain line is usually required as well. Also verify mounting bracket geometry, pin spacing, quick‑coupler compatibility, and boom lift capacity at your typical working radius before ordering. Give us your machine details and we'll confirm the right model and mounting package.
Typical Applications

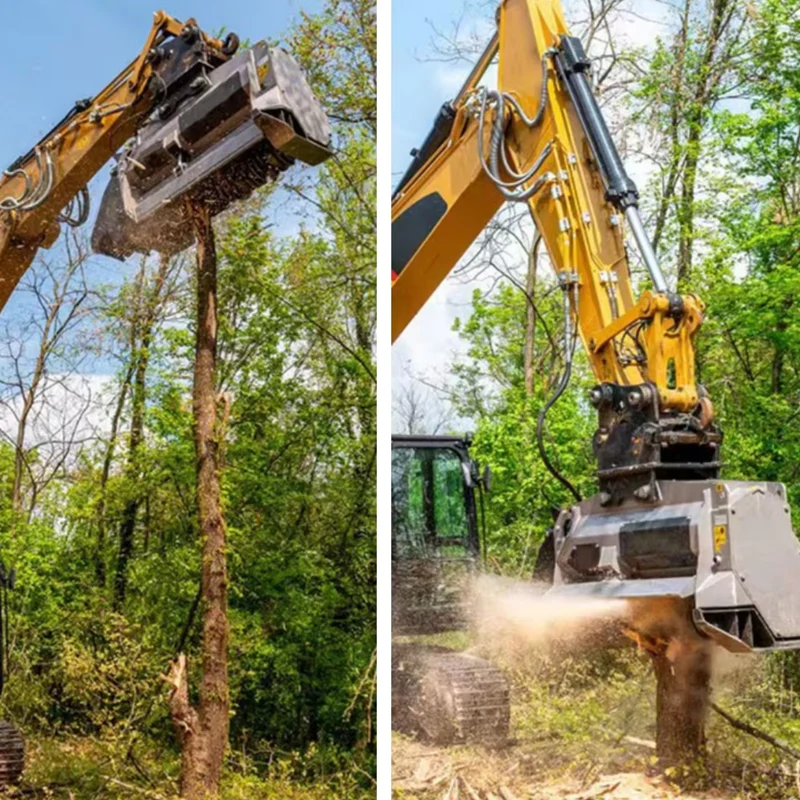

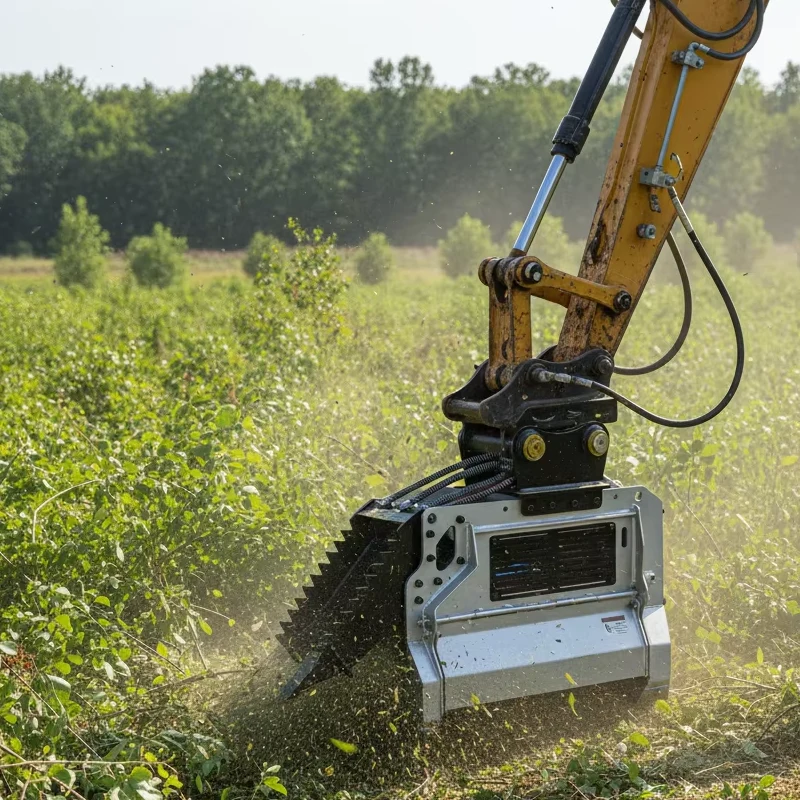

Land and lot clearing where you need to mulch vegetation and then stack, move, or load the debris
Farm, park, and greenbelt maintenance that calls for both reduction and debris handling
Right‑of‑way clearing along roads, trails, and utility lines—especially in tight spaces where debris piles are a problem
Storm cleanup and disaster recovery, when fallen trees and branches need to be mulched and then removed
Working Principle
The attachment pins to your excavator boom and ties into two hydraulic circuits: one for drum rotation and one for thumb operation. As the drum spins, its cutting teeth shear and grind brush and woody material into mulch that drops out below the housing. The hydraulic thumb, mounted above the drum, can be closed to grip branches or debris, hold material steady against the drum for more controlled mulching, or lift and move processed material to a pile or truck.
This dual‑purpose design cuts downtime on mixed‑use jobs by eliminating the need to switch between a mulcher and a separate grapple or thumb attachment. The operator runs both functions from the cab, adjusting drum speed and thumb position to match whatever material is being processed.
Dealer & Bulk Orders
We welcome inquiries from dealers, distributors, and OEM buyers. Reach out to our sales team for volume pricing, production lead times, and private‑label options.
Request a Quote — Excavator Drum Mulcher with Hydraulic Thumb
Send us your excavator make and model, operating weight, available hydraulic circuits and flow rates, mounting or coupler type, preferred model (TG-M02 / TG-M04 / TG-M06 / TG-M10), and how many units you need. Our team will confirm the right configuration and provide a quote based on your machine specs, mounting needs, and delivery terms.
Dealer inquiry: Contact our team to discuss volume requirements, OEM supply, and custom configuration options.
